Summary
Fortune 60 Owned and Operated since new
Engines enrolled on ESP Gold program
Sikorsky Powertrain Assurance Program (PAP) for Main, Intermediate, and Tail Rotor Gear Boxes
12/24/36 month inspections completed in 2023 at Sterling Aviation
Deluxe VIP Executive 5 Passenger Interior
C4 Environmental System
Emergency Flotation System
Airframe
TT: 1,106
Landings: 2,406
Engine(s)
Pratt & Whitney PW210S
TT: 1,106 / 1,106
Quiet Main Rotor Gear Box: 1,106
Intermediate Gear Box: 1,106
Tail Rotor Gear Box: 1,106

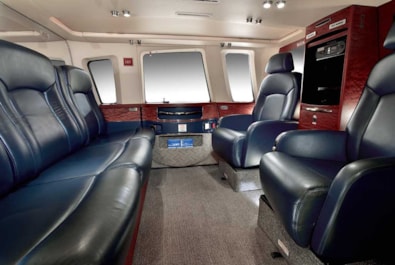

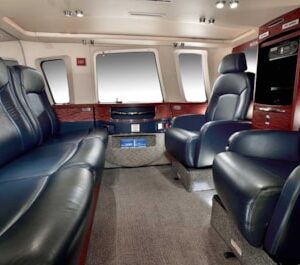

Interior Details
Original Interior Completed in 2013
Deluxe VIP Executive 5 passenger configuration with “Silencer” interior wall panel system features a FWD cabinet
between two AFT facing club seats opposite a 3 seat forward facing bench.
Executive Interior configuration separated from the cockpit by a permanent bulkhead features a forward aft facing center refreshment cabinet between two aft facing captains’ executive club chairs and a 3 passenger forward facing aft divan with fold-down armrests, under-seat storage compartments for life vest and fire extinguisher storage, and fold-down center table.
The center refreshment cabinet features a pull-out serving counter with offset cup holders, and 4 drawers featuring a trash container, mini water bottle/soda can storage, ice chest with self-closing lid and overboard drain.
Exterior Details
Paint completed in 2013
Matterhorn White, Light Blue, Blue, Medium Gray, Black, Rojo Red and Arista Blue
Dual Passenger steps
Auto Float Deployment System / Emergency Flotation System

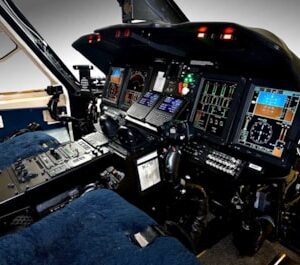

Avionics
Thales TopDeck Avionics Suite with Rockwell Collins Proline 21 Communication & Navigation
COMM: Dual Collins VHF-4000
NAV: Single Collins Proline 21 NAV 4000 & NAV 4500 w/ VOR
Radio Mgmt System: Dual ARINC 739 MCDU w/ RMS Interface & FMS Interface
PFD: Dual Pilot Flight Displays
MFD: Dual Multi-Function Displays
AHRS: Dual Lite LCR 100 AHRS
Radio Altimeter: Thales AHV-1600
Weather Radar: Honeywell Primus 880 Digital 5-Color Radar
Transponder: Dual Rockwell CollinsTDR-94D w/ Mode S w/ ADS-B Out
DME: Dual Rockwell Collins DME Proline 21 DME-4000
GPS: Dual WAAS GPS System with LPV Approaches
Flight Director: Thales
Auto Pilot: Thales
Air Data Computer: Dual Thales C17133EA01
AIR DATA: Dual Thales ADU-3200
FMS: Thales Flight Management System
IESI: Thales Integrated Electronic Standby Instrument
ELT: ArtexELT406‐NHM406MHzELT w/GPS Interface
FDR/CVR: Universal Combined FDR & CVR (120 Min of Voice & 25 Hrs Data)
TCAS: Bendix/King KTA-970 TCAS I
EGPWS: Honeywell Mk XXII EGPWS
Maintenance Status
Fortune 60 Owned and Operated since new
Engines enrolled on ESP Gold program
Sikorsky Powertrain Assurance Program (PAP) for Main, Intermediate, and Tail Rotor Gear Boxes
12/24/36 month inspections completed in 2023 at Sterling Aviation
Operated and Maintained Part 91
Maintenance Records Tracked on Sikorsky HELOTRAC™ Fleet Management System
Inspection / Compliance / Next Due
50 Hour / 1,064 / 1,114
100 Hour / 1,064 / 1,164
300 Hour / 969 / 1,299
900 Hour / 867 / 1,857
Features/Options
Digital Moving Map onThales Multifunction Displays (DMAP)
True North Simphone – utilize for Intercom purposes exclusively. (Cabin to Cockpit or Cockpit to Cabin communication)
Dukane DK-120 Underwater Locator
Dual Wulfsburg Audio Panel
Davtron Digital Clock
C4 Environmental System
Whelen Strobes
Left & Right Fixed LED Landing Lights
Cabin ICS
Pulselite System
Electric Door Locks
Emergency Flotation
Cabin Briefing System
Cabin Paging/Chime System
M/R Recognition Light
LED Logo Lights
Hinged Fuel Caps
Manual Rotor Brake System
Engine Wash Fittings
Exterior Camera System
Retractable Boarding Step System
Heated Windshields / Windshield Wiper System Sun Tint Windshield & Tinted Cabin Windows
LED Search Light
AVCS System
Acoustic Noise Reduction
3P Bifilar Vibration Suppression System
Rosen Sunvisor Systems
Helicopter Emergency Egress Lighting System (HEELS)
